We Provide 1-2T/H Feed Pellet Production Line Turnkey Project That Will Produce Pellets With the World Standard Technologies!
KINDLY REMINDER: If you are interested in our products, Please get in contact with us

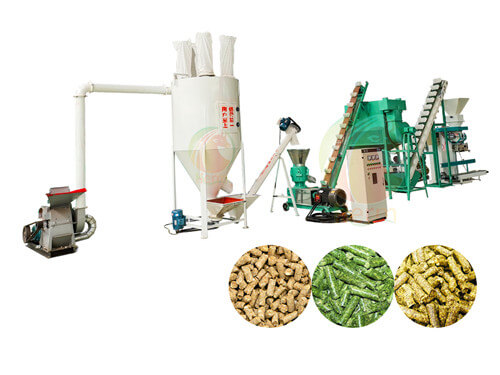

Herm machinery top sell easy to operate 1-2 t/h feed pellet production line is suitable for processing various animal feeds, such as poultry feed, ruminant feed, aquatic feed, livestock feed and pet food. The main equipment of a complete 1-2 ton per hour feed pellet plant production line includes 37kw hammer mill crusher, 22kw szlh250 1-2 t/h feed pellet mill, single roller double rotary belt mixer, counter-flow feed pellet cooler, crumbler machine, pulse dust collector, vibrating screen, bagging machine, etc.
1. Raw Material Storage: This process is often a technical one which begins with the storage of raw materials such crop straws, grains and other additives in large silos.
2. Cleaning Process: After storage, impurities such as stones, sacks need to be removed in time so as to ensure smooth production of the feed products.
3. Crushing Process: The raw material is then taken to a crushing area where it is crushed in two stages and placed into batches waiting for the next stage where feed materials are weighed manually and poured into mixing machines.
4. Mixing Process: At the mixing chamber the feeds are mixed using both continuous and batch methods in order to ensure that the components blend with another perfectly and also for replacing the lost feed formula.
5. Pellets production Process: The feed is then pelletized using flat die feed pellet mill or ring die feed pellet mill which ensures that the material is heavily densified in desirable sizes.
6. Cooling Process: In the end, the feed pellets will be cooled to between 75-85degrees. Sieving machine is also needed as the sieving process is able to separate powder from finished feed pellets in which the pellets are packed while powder goes back to pelletizing process.
Self-processing and production of feed pellets, can improve work efficiency, reduce feed costs, for users to increase profits. It can not only suppress cattle and sheep feed, but also can process pig, chicken, duck and other feed pellets. When making your own feed particles, different materials can be added according to the different needs of animals to ensure the safety of feed and the comprehensive nutrition of animals.
Feeding granulated feed can increase animal intake and avoid animal pickiness, which is conducive to digestion and absorption. It can shorten the growth period of animals, easy to transport, and can be kept for half a year.
Herm Machinery CE approved easy to use 1-2 t/h feed mill plant production line is widely applied to small scale and medium scale feed pellet production line of animal feed pellets. It can produce 1-2 t/h pellet feed per hour. The manufactured pellet feed is suitable for raising chicken, duck, goose, bird, cow, cattle, sheep, camels, alpacas, horse, pig, rabbit, fish, shrimp, crab, cat, dog and other animal feed processing and production.
Raw material of feed pellets include animal protein and plant protein. Animal protein is from fish meal, shrimp meal, crab meal, bone meal, amino acid, fusel meal, sleeve-fish meal and so on. Plant protein comes from soybeans, soybean meal, alfalfa, wheat bran, grass, rice, beans, sweet sorghum, oil cake, etc. You can add other ingredient according to requirements and eating habits of animals.
raw materials used in the 1-2 t/h feed pellet production line
| NO. | Name | Model | Power（kw） | Quantity |
| 1 | Screw conveyor | TLSS16 | 2.2 | 1 |
| 2 | Feed hammer mill | 15-200 | 11 | 1 |
| 3 | Mixing machine | SLHY0.5A | 4 | 1 |
| 4 | Feed pellet machine | SZLH-250 | 22 | 1 |
| 5 | Cooler with airlock | SKLN1.0*1.0 | 0.93 | 1 |
| 6 | Crumbling machine | SSLG15*100 | 5.5 | 1 |
| 7 | Vibrating sifter | ZDS60*1 | 0.25 | 1 |
| 8 | Auto Packing machine | DSC-50 | 3 | 1 |
